MORPHEUS Air – Portable Power Independence Kit (1.2 kWh)
Pelican Air case + Victron system • TSA-friendly with removable battery • Off-grid power for travel, camping, and emergencies.
$1699.00

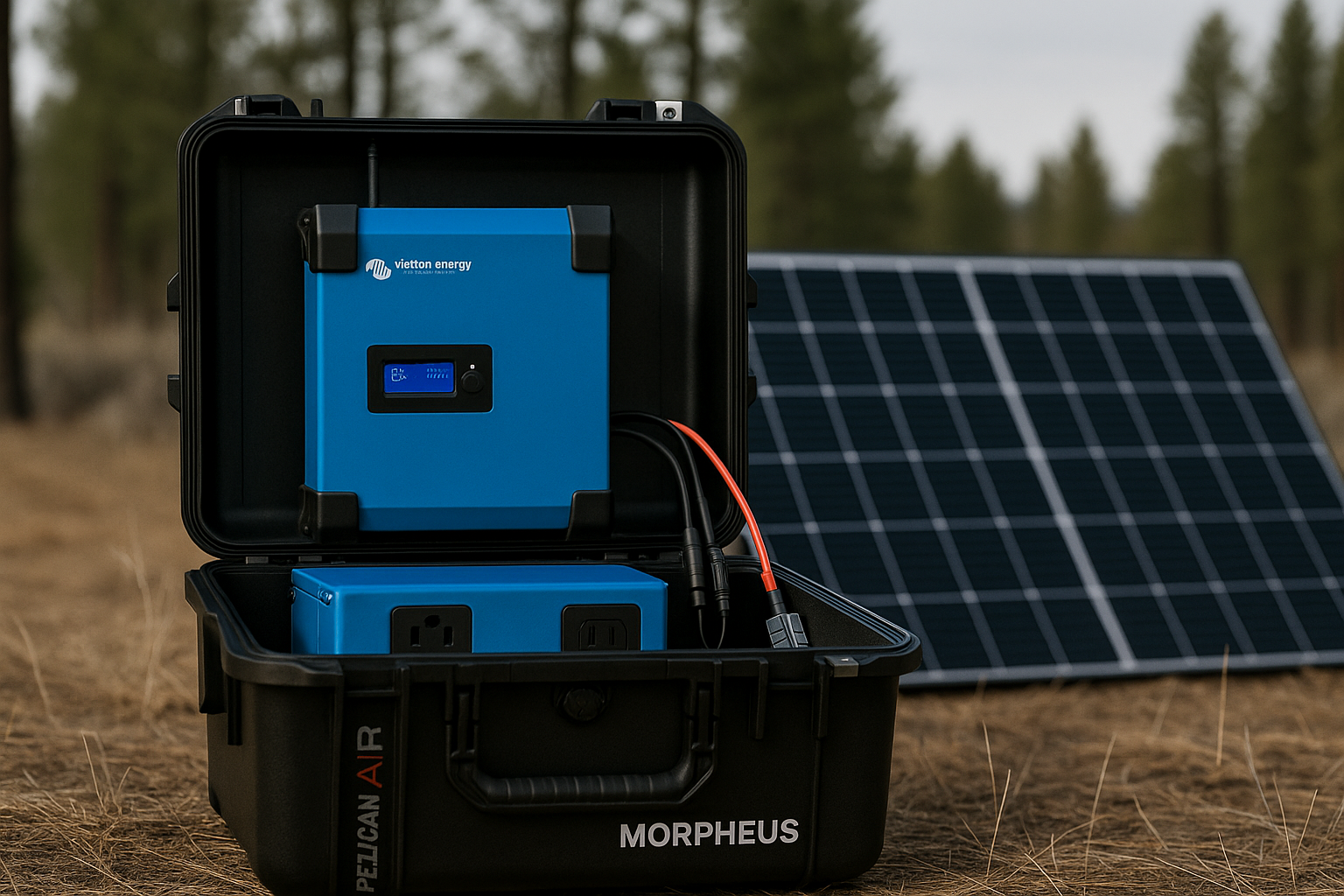

The MORPHEUS Air is a carry-on sized portable power system built inside a Pelican Air 1535 case.
To meet TSA and FAA regulations, the 1.2 kWh LiFePO₄ battery is fully removable via Anderson quick-disconnects. This makes the case itself airline carry-on compliant once the battery is detached.
Ship or store your batteries separately, then reconnect on-site for instant off-grid energy.
Powered by Victron Energy components, MORPHEUS Air is engineered for resilience, travel, and independence.
✅ Highlights
TSA Carry-On Ready (with battery removed)
Removable 100Ah LiFePO₄ battery via Anderson quick-disconnects
1.2 kWh capacity — expandable with spare batteries at your destination
Rugged Pelican Air 1535 case — lightweight, durable, airline-approved size
Victron smart core: inverter, MPPT, charger, and shunt pre-wired

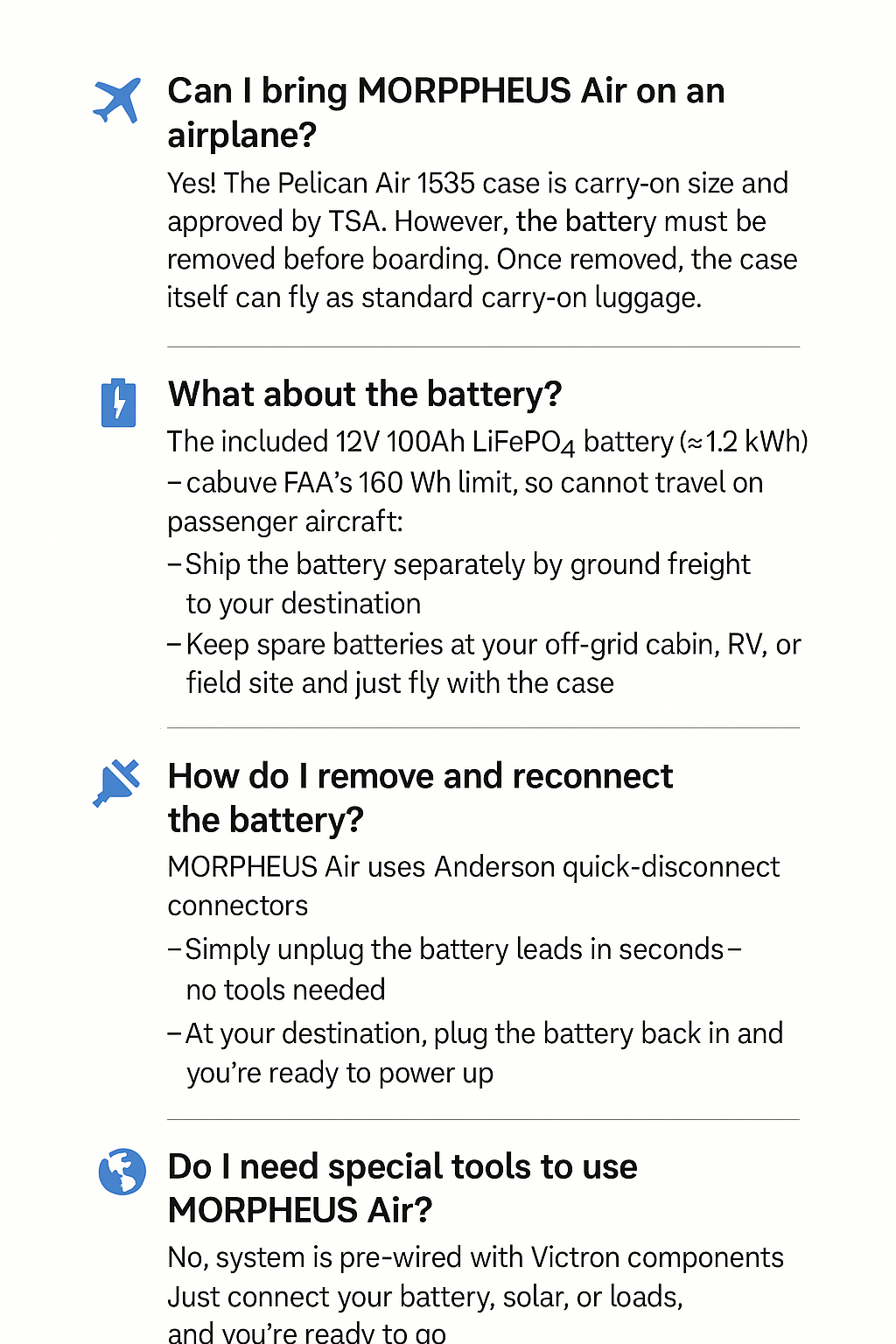

MORPHEUS Air – FAQ
✈️ Can I bring MORPHEUS Air on an airplane?
Yes! The Pelican Air 1535 case is carry-on size and approved by TSA.
However, the battery must be removed before boarding. Once removed, the case itself can fly as standard carry-on luggage.
🔋 What about the battery?
The included 12V 100Ah LiFePO₄ battery (≈1.2 kWh) is above FAA’s 160 Wh limit, so it cannot travel on passenger aircraft.
Instead, you can:
Ship the battery separately by ground freight to your destination
Keep spare batteries at your off-grid cabin, RV, or field site and just fly with the case
⚡ How do I remove and reconnect the battery?
MORPHEUS Air uses Anderson quick-disconnect connectors.
Simply unplug the battery leads in seconds — no tools needed.
At your destination, plug the battery back in and you’re ready to power up.
🛠️ Do I need special tools to use MORPHEUS Air?
No. The system is pre-wired with Victron components. Just connect your battery, solar, or loads, and you’re ready to go.
🌍 Who is this for?
Travelers who need field-ready energy
First responders & emergency crews
Campers, overlanders, and digital nomads
Off-grid users who want independence & portability
DIMENSIONS: |
|
Core Components
Pelican Air 1535 Case – ultra-light, rugged, airline-ready, watertight, crushproof
375VA Pure Sine Wave Inverter (12V) – stable AC output, standard household outlet
75V/15A Solar Charge Controller – Bluetooth-enabled, handles up to 15 amps solar input
12V/5A Smart Charger – AC charging, trickle/float capable for battery health
300A Smart Battery Monitor – Bluetooth monitoring with detailed app insights
12V 100Ah LiFePO₄ Battery (Group 31) – 110A BMS, low-temp protection, ~15,000 cycles (optional upgrade, ships separately if TSA option chosen)
10AWG Wire Kit (25ft Red/Black + Heat Shrink) – pre-cut for quick installation
60A Maxi Fuse Holder + Fuse – primary DC circuit protection
40A MEGA Fuse + Holder – inverter protection
High-Current Disconnect Switch (180/1000A) – safe system isolation
Solar MC4-to-SAE Adapter + Sidewall Port (10AWG) – quick solar connection point
78W USB Charging Panel – 4 ports (2x USB-C PD + 2x USB-A QC3.0)
Weatherproof 120V AC Outlet – outdoor-rated with 20” 12AWG extension cord
🛄 TSA-Friendly Option
Quick-disconnect battery system (Anderson connectors)
Remove the battery in seconds for airline travel
Carry the Pelican Air case as TSA-approved carry-on
Battery ships separately or can be kept at your destination
⚖️ Approx. Weights
Case (empty): ~9 lb
Electronics (inverter, controller, monitor, charger, wiring, fuses, outlets): ~10 lb
Battery (100Ah LiFePO₄): ~26 lb
Total system: ~45 lb (portable, one-hand carry, rollable case)
🛠️ Installation Notes
Pre-wired harnesses included for plug-and-play setup
Anderson quick-connects for battery, solar, and loads
Generator-style AC inlet for shore power or generator charging
Minimal setup, field-deployable in minutes
🚚 Shipping & Delivery
Ships in Pelican Air 1535 case (foam removed, components installed)
Battery ships separately if TSA-friendly option selected
Lead time: 2–3 weeks for assembly and testing
✅ Warranty
Electronics: 5 years
Battery: 10 years (limited)
Case: Lifetime guarantee
